Zirconia Planetary Mill Jar Grinding Container Used In High-energy Planetary Ball Mills

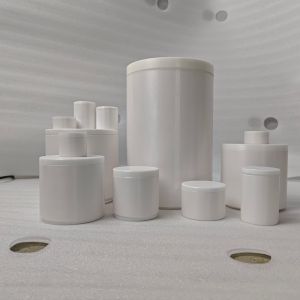

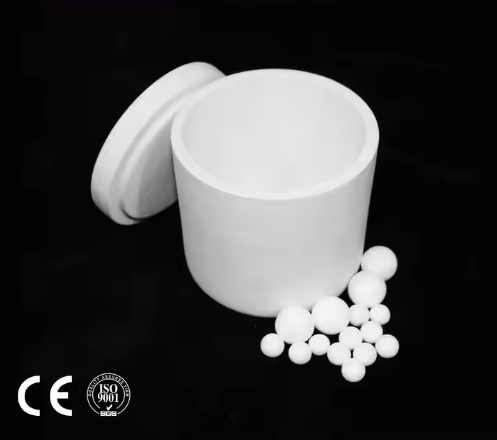

A Zirconia Planetary Mill Jar is a specialized grinding container used in high-energy planetary ball mills. Its primary function is to hold the sample material and grinding media (balls) while being subjected to complex rotational movements that result in intense grinding, mixing, homogenization, and mechanical alloying.

The defining characteristic of this jar is that it is constructed from Zirconium Dioxide (ZrO₂), a high-performance advanced ceramic, rather than traditional materials like stainless steel, alumina, or polyurethane.

Zirconia, specifically Yttria-Stabilized Zirconia (YSZ), is the standard material for these jars. Pure zirconia undergoes a destructive phase transformation during heating and cooling, which would cause it to crack. To prevent this, oxides like Yttria (Y₂O₃) are added to stabilize the tetragonal phase at room temperature, resulting in a material with exceptional mechanical properties.

This is the most critical property. When a stress (like an impact from a grinding ball) is applied and creates a micro-crack, the zirconia grains at the crack tip undergo a phase change, slightly expanding in volume. This expansion "squeezes" the crack shut, preventing it from propagating. This makes zirconia incredibly tough and resistant to fracture.

Zirconia jars are chosen for applications where contamination and jar durability are paramount. Their advantages stem directly from the properties of the YSZ material.

Zirconia is one of the hardest advanced ceramics. It has exceptional resistance to abrasion, leading to a very long service life even when processing hard, abrasive materials. There is minimal wear from the jar itself compared to other materials.

This is the single biggest advantage.

• Compared to Steel: Eliminates iron (Fe) and chromium (Cr) contamination entirely.
• Compared to Alumina (Al₂O₃): While alumina is also a ceramic, it is harder but more brittle. Zirconia's toughness means it is less likely to chip or shed material, resulting in lower Alumina (Al) contamination. For applications sensitive to even trace aluminum, zirconia is the superior choice.

The high density of zirconia (≥6.0 g/cm³) means the grinding balls possess significant momentum, delivering more impact energy to the sample for more efficient size reduction and mechanical activation.

Zirconia is highly resistant to attack by most acids, alkalis, and organic solvents. This makes it suitable for wet milling with a wide range of solvents without risk of corrosion or chemical degradation of the jar.

As explained by "transformation toughening," zirconia can withstand the high-impact forces and severe mechanical stresses inside a planetary ball mill without fracturing.

Zirconia jars are indispensable in fields requiring ultra-pure processing and size reduction to the nanoscale.

• Nanomaterial Synthesis: Production of metal nanoparticles, oxide ceramics, and composite nanomaterials where purity and controlled particle size are critical.
• Mechanical Alloying: Creating advanced alloy powders from elemental blends without contamination from the milling container.
• Pharmaceutical Research: Size reduction of active pharmaceutical ingredients (APIs) to enhance bioavailability, where metallic contamination is strictly prohibited.
• Electronics and Battery Material Development: Processing of cathode/anode materials (e.g., LiFePO₄, NMC), solid electrolytes (e.g., LLZO), and other electronic ceramics where even ppm-level contamination can ruin electrical properties.
• Geology and Archaeology: Contamination-free pulverization of soil, rocks, and ancient artifacts for precise chemical and isotopic analysis.
• High-Purity Ceramics Processing: Grinding and mixing of precursor powders for advanced ceramics like silicon nitride (Si₃N₄), silicon carbide (SiC), etc., without introducing impurities.

Despite its superior performance, zirconia has some drawbacks.

• High Cost: Zirconia powder is expensive to produce, and the sintering process is complex. A zirconia jar can cost several times more than a comparable alumina or stainless-steel jar.
• Weight: Its high density makes it heavier than alumina or polymer jars, which can be a consideration for the mill's motor and balance.
• Potential for Contamination (in specific cases): While vastly superior to other materials, zirconia can still introduce trace amounts of ZrO₂ and Y₂O₃ into the sample. For most applications, this is negligible, but for research where even zirconium is an undesirable contaminant, it may not be suitable.
• Thermal Shock Resistance: While good, it is generally lower than that of alumina. Rapid, extreme temperature changes should be avoided to prevent cracking.

Choosing the Right Size: Jar volume should typically be 1/3 to 1/2 of its total capacity when filled with sample and grinding media to allow for efficient movement and impact.

Selecting Grinding Media: For true contamination-free milling, you must use zirconia grinding balls. Using steel balls in a zirconia jar will contaminate the sample and rapidly wear down the jar.

Sealing System: Ensure the lid has a reliable sealing mechanism (often with an O-ring) to prevent sample loss, especially during long milling times or when using solvents.

Cleaning and Maintenance: Clean thoroughly with appropriate solvents (e.g., dilute acid, followed by distilled water and ethanol) after each use. Inspect the interior for any signs of chipping or wear before use.

A Zirconia Planetary Mill Jar is a premium, high-performance grinding vessel designed for the most demanding applications in research and industry. Its unparalleled combination of toughness, wear resistance, and chemical inertness makes it the gold standard for contamination-sensitive processes, particularly in the fields of nanomaterials, advanced batteries, and pharmaceuticals, where the purity of the final product is non-negotiable.
