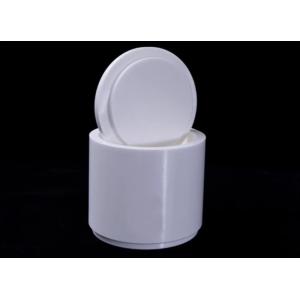

Sub-micron Surface Finish Nanoparticle Zirconia Precision Grinding Jar High-density
Product Description
| Feature | Zirconia Jar | Alumina Jar | Stainless Steel Jar |
|---|---|---|---|
| Hardness | ⭐⭐⭐⭐⭐ (1,200 HV) | ⭐⭐⭐ (1,500 HV but brittle) | ⭐⭐ (~500 HV) |
| Fracture Toughness | ⭐⭐⭐⭐⭐ (6-10 MPa·m¹/²) | ⭐⭐⭐ (3-4 MPa·m¹/²) | ⭐⭐⭐⭐ (High, but wears over time) |
| Chemical Resistance | ⭐⭐⭐⭐⭐ (Inert) | ⭐⭐⭐⭐ (Good) | ⭐⭐ (Corrosion risk) |
| Contamination Risk | ⭐ (None) | ⭐⭐ (Low) | ⭐⭐⭐ (Metal traces) |
| Lifespan | ⭐⭐⭐⭐⭐ (Longest) | ⭐⭐⭐ (Moderate) | ⭐⭐ (Wears fastest) |
Product Paramenters
Material selection of ball mill jar
The material of the ball grinding jar has no pollution to the grinding material and has no effect on the appearance of the material after grinding
| Types and requirements of grinding materials | Ball mill jar material selection reference |
| Soil and materials that do not allow impurities | Agate ball mill jar |
| Metal, non-metal do not allow to bring impurities into the material | Zirconia ball mill jar |
| Diamond, carbide and other high hardness materials | Carbide ball mill jar |
| Strong acid, strong base substances and high temperature conditions | Teflon ball mill jar |
| Materials with low sensitivity to iron and steel minerals and impurities | 304 stainless steel ball mill jar |
| Pigment class, after the sequence can be high temperature treatment class materials | Nylon ball mill jar |
| Ceramic glaze and other aluminum-containing materials | Corundum ball mill jar |
| Lithium and other electronic materials | Polyurethane ball mill jar |
| Materials that are easily oxidized and require special atmosphere protection | Vacuum ball mill jar |
| Grinding Jar& Ball | Agate Ball | Zirconia Ball | TC-ball | Stainless Steel Balls | Alumina Balls | Polyurethane Covered Core Ball | Steel Ball |
| Agate Jar | ▲ |
|
|
|
|
|
|
| Zirconia Jar |
| ▲ |
|
|
|
|
|
| TC-Jar |
| ○ | ▲ |
|
|
|
|
| PTFE Jar | ▲ | ○ |
|
|
|
|
|
| Stainless steel Jar |
|
|
| ▲ |
|
|
|
| Nylon Jar | ○ | ▲ |
|
|
|
|
|
| Corundum Jar |
| ○ |
|
| ▲ |
|
|
| Polyurethane Jar | ○ | ○ |
| ○ |
| ▲ |
|
Note:▲superior formulation, ○optimal formulation
Ball size ratio: Usually the best grinding ball ratio is 20% for large ball, 50% for medium ball, 30% for small ball (weight ratio).
Factory equipment
Exhibition & Partner
Case
Ship to Portugal
Ship to Republic of Lithuania
FAQ
What safety precautions should I take when using a planetary mill jar?
Wear protective gear, ensure proper sealing, and follow the manufacturer’s operating guidelines to avoid accidents.
How do I store planetary mill jars when not in use?
Store them in a dry, clean environment to prevent corrosion or contamination.
What industries commonly use planetary mill jars?
They are used in pharmaceuticals, ceramics, chemicals, metallurgy, and research laboratories for grinding, mixing, and sample preparation.
